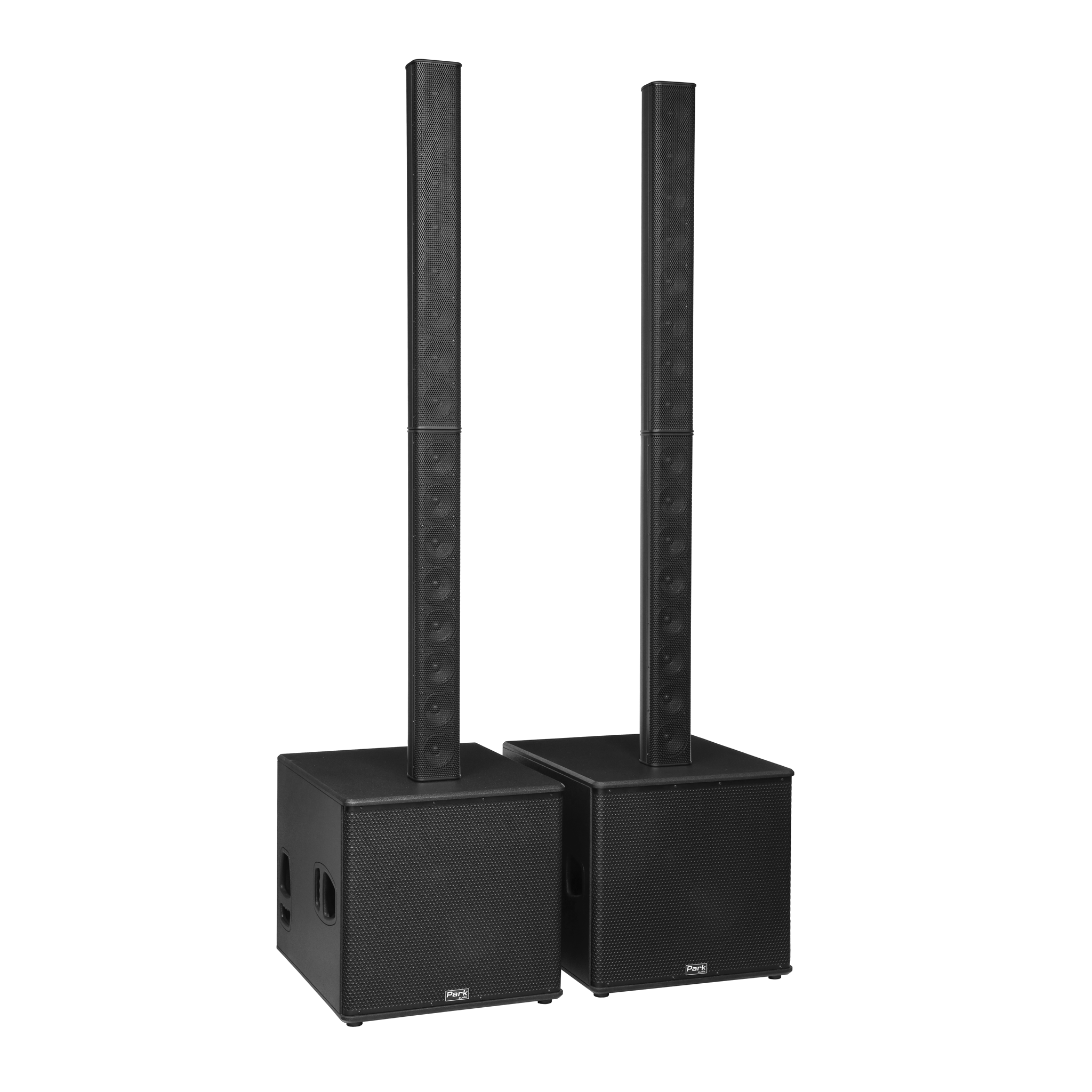

Spike 4818.05 Duo
Spike 4818.05 Duo
Park Audio engineers managed to combine all the advantages of a line array in a compact design. At the same time, the power is quite impressive (6000 watts).
What is 4818.05 Duo
This is a professional sound system with a power of 6000 watts and a maximum sound pressure of 136 dB. Impressive, isn’t it? Especially considering its size.

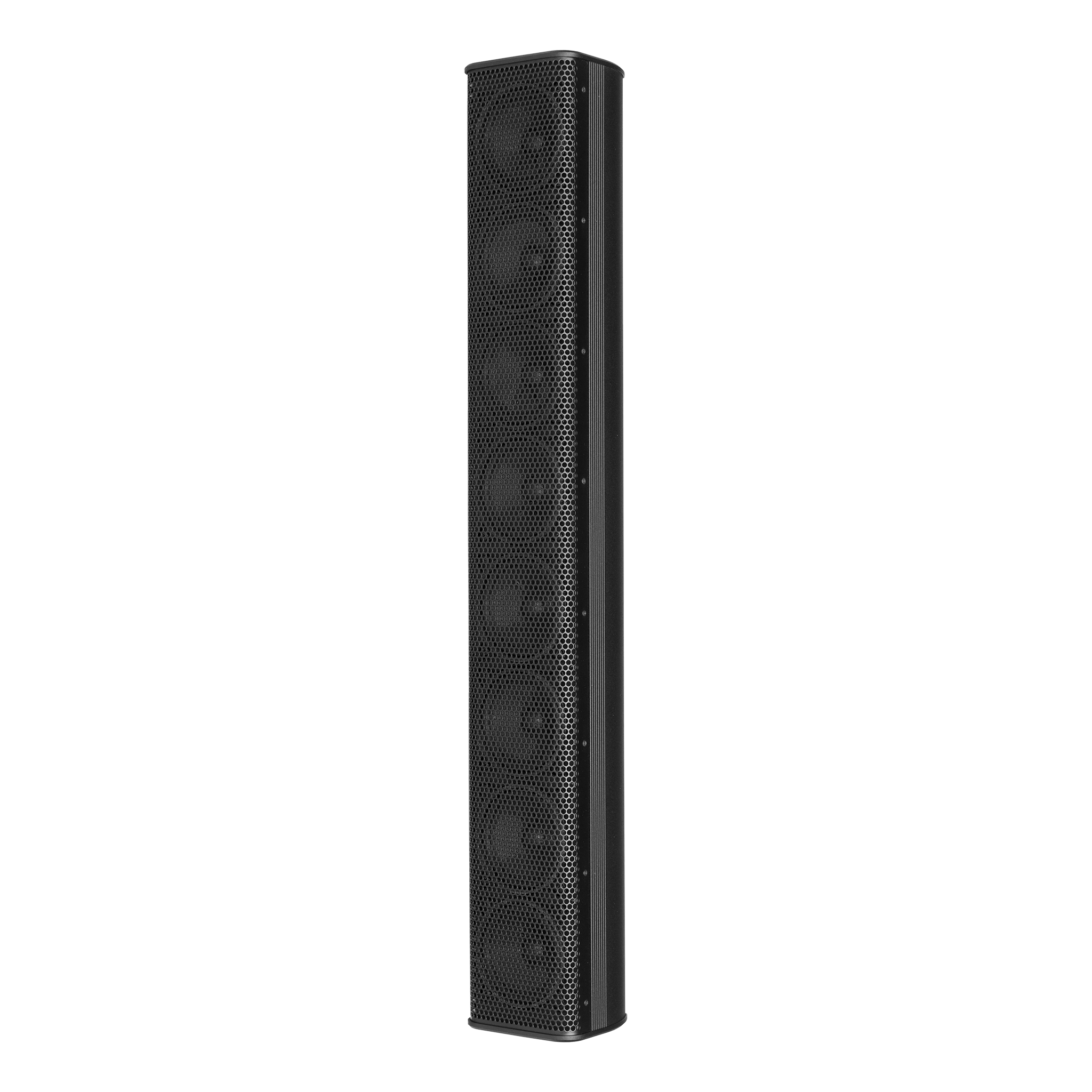

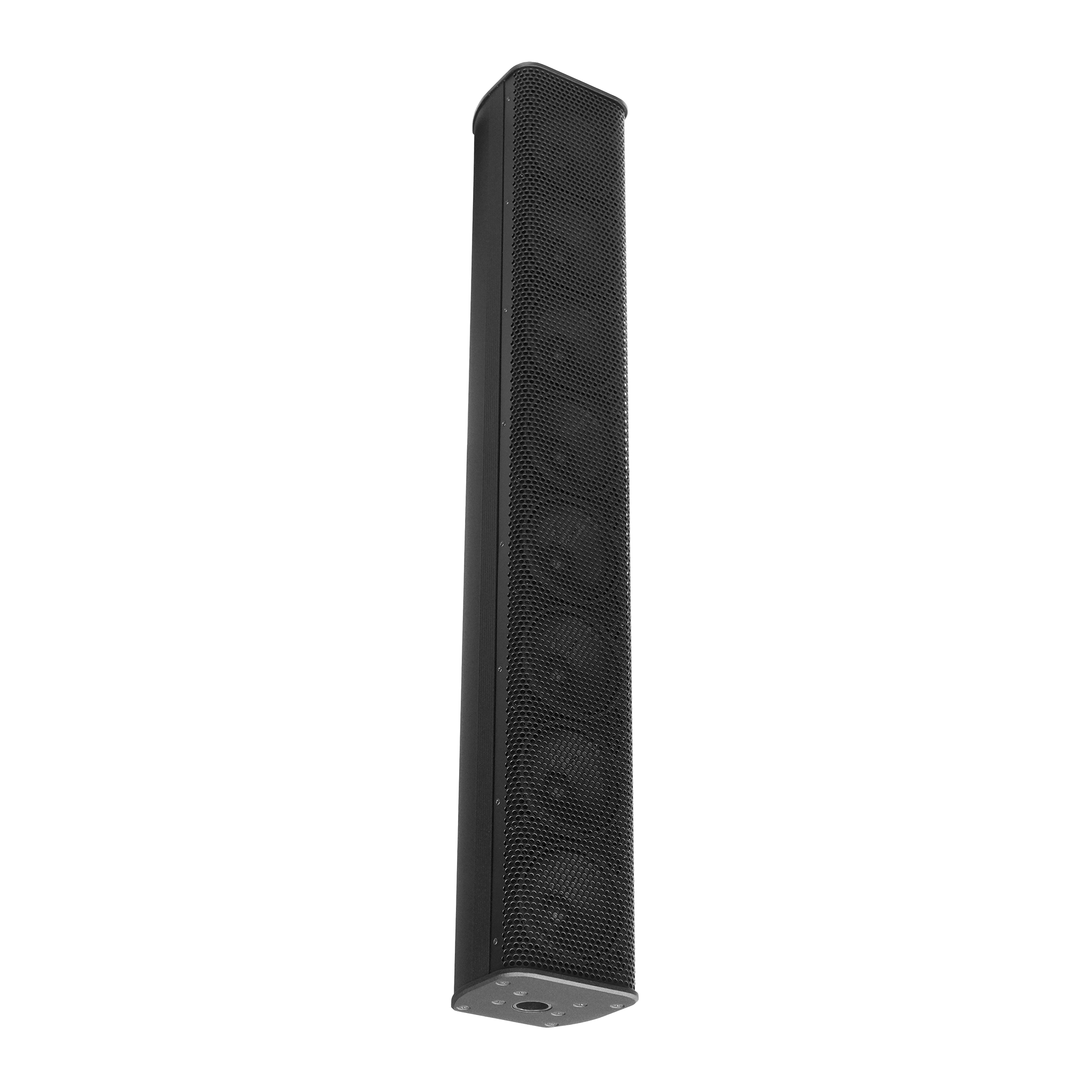

VA408.05
A line array of 8 4″ speakers, made in a metal sealed housing. The small radius of the speakers allows them to be placed at a short distance from each other, which in turn minimizes interference and provides all the advantages of a line array, such as long range (only -3dB per m) and the absence of proximity effect, which in turn minimizes feedback from the microphone. But that’s not all!

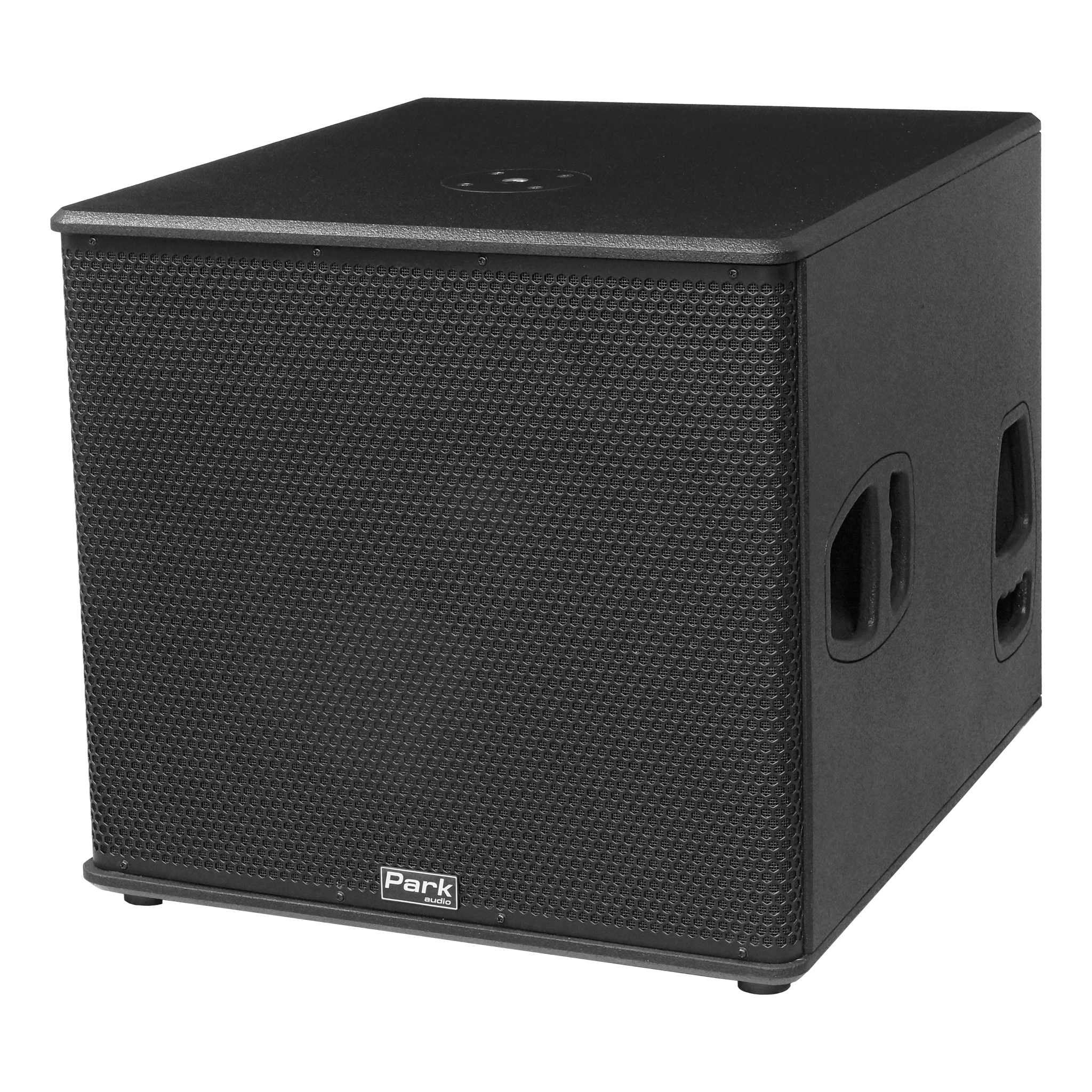

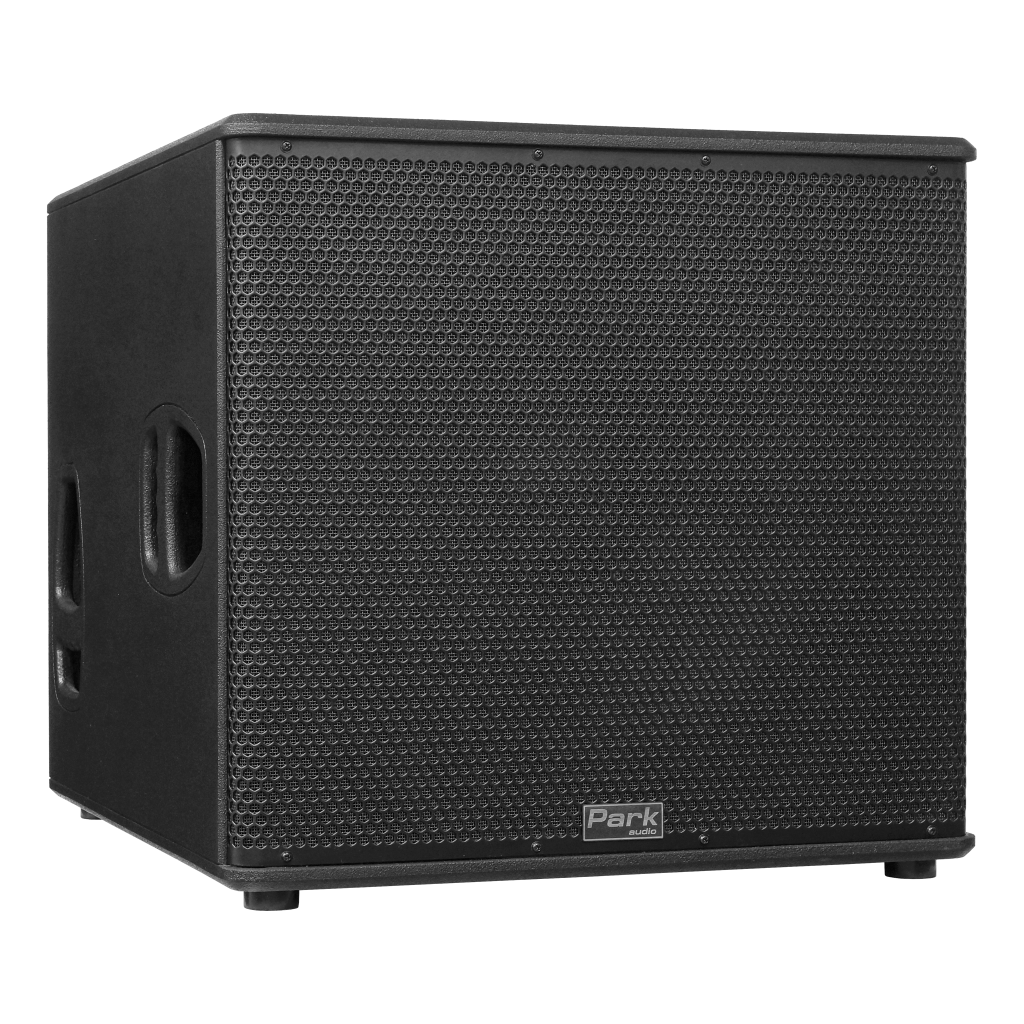

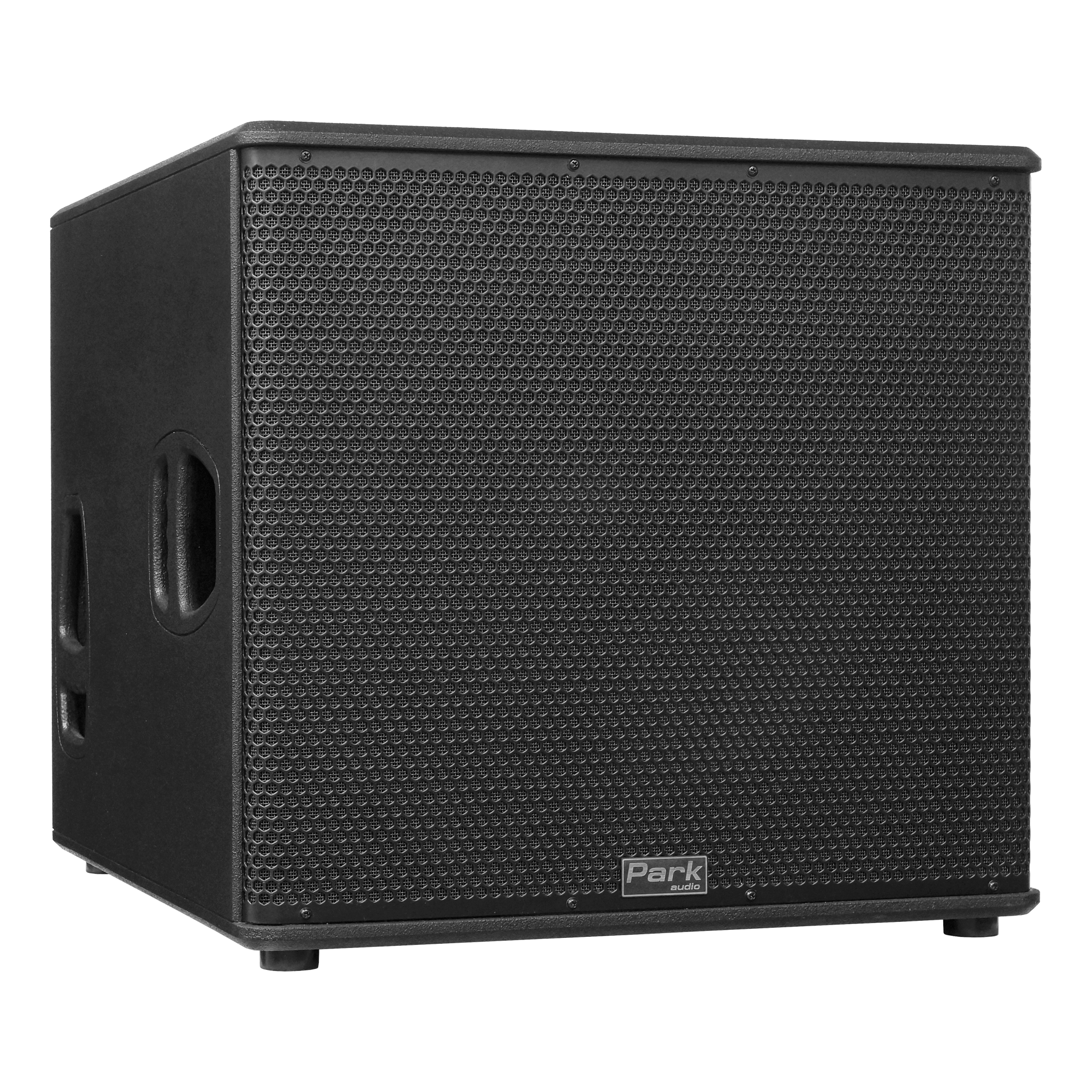

PZ118-P.05
An 18″ active subwoofer that is capable of reproducing the lowest frequencies of most compositions, which is as much as 36 Hz, and provides an impressive sound pressure of 133 dB per meter. The built-in amplifier has a PFC unit, which allows the system to operate within 160-250 volts.
Technical data
Model name
Spike 4818.05 Duo
| Power (summ) | 6000 W |
| Frequency response | 36 Hz – 17 KHz |
| SPL max. | 136 dB |
Loudspeaker VA408.05
| Power (nominal/programm) | 240 / 480 W |
| Frequency response | 100 Hz – 17 KHz |
| SPL max. | 133 dB / 1 m |
| Transducers | 8 x 4″ dia FaitalPRO full range speaker |
| Sensitivity | 99 dB |
| Nominal impedance | 8 Ohm |
| Directivity: | |
| – horizontal | 130° |
| – vertical | 15° (array effect) |
| Mass | 8.8 Kg |
Subwoofer PZ118-P.05
| Configuration | Active subwoofer |
| Power (nominal/programm) | 700 / 1400 W |
| Frequency response | 36 Hz – 180 KHz |
| SPL max. | 105 dB / 12 m |
| Transducers | 18″ dia B&C SPEAKERS, voice coil 4″ |
| Sensitivity | 96.5 dB |
| Nominal impedance | 8 Ohm |
| Dimentions | 570x543x667 (W, H, D) |
| Acoustic design | Rectangular case, bass reflex |
| Body material, coating | Birch plywood, black water-polymer paint |
| Mesh material, coating | Perforated steel, black powder paint. |
| Mass | 43 Kg |

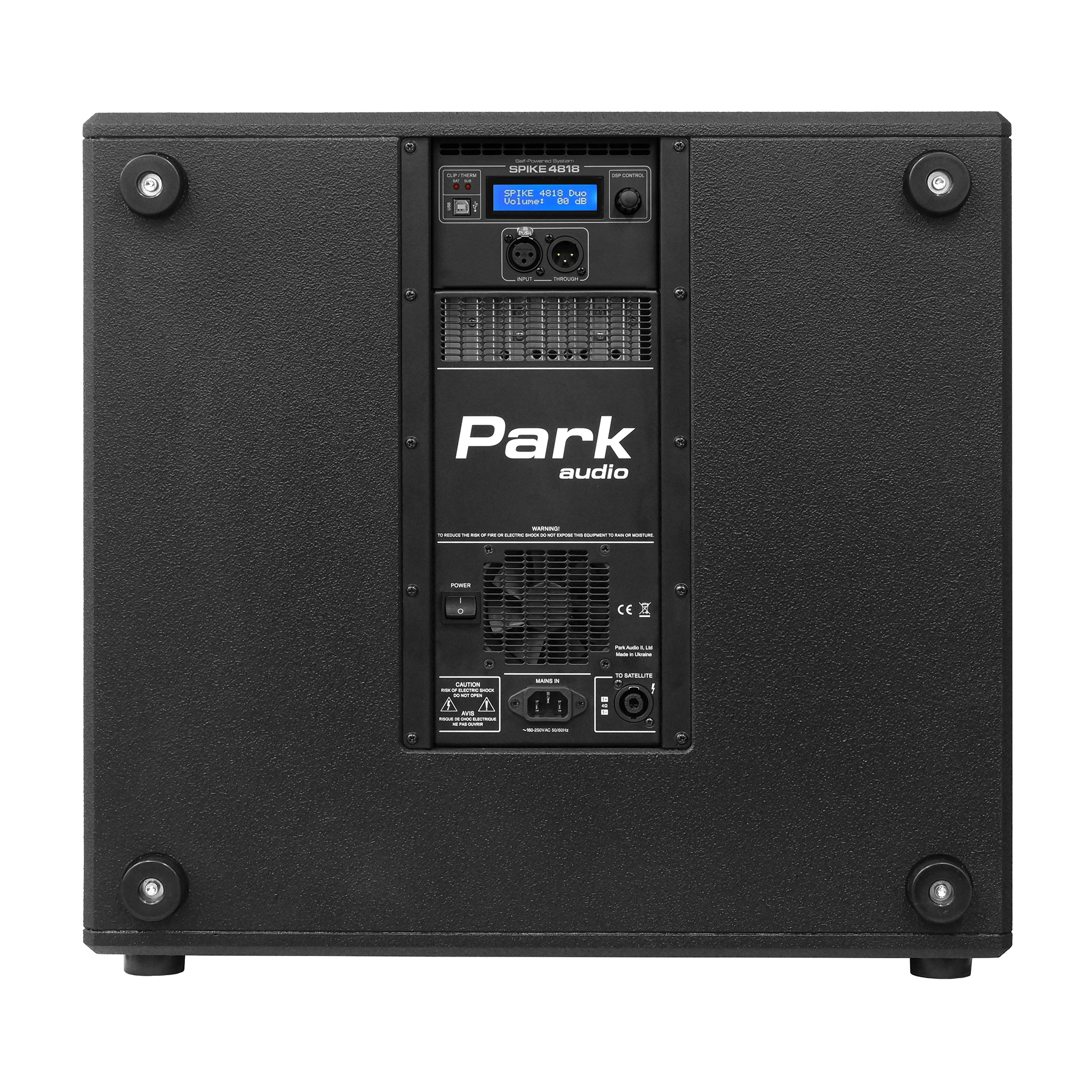

Built-in PZ118-P.05 amplifier with DSP platform
| Rated power (RMS): | |
| – subwoofer channel | 2000 W, class D |
| – satellite channel | 1000 W, class D |
| Sensitivity | 775 mV |
| The input resistance is | 10 kΩ |
| Signal-to-noise ratio | 98 dB (unweighted) |
| Input / line output | XLR / XLR |
| Forced cooling | Yes |
| Power supply | ~160-250 V, 50 / 60 Hz |
DSP processor
| Sampling frequency | 48 KHz |
| Converters bit rate | 24-bit |
| Internal signal processing | 56-bit |
Who is this system for?
Ideal for touring bands due to its compactness and professional durability, bars, restaurants where concerts are held. Due to its fairly high power and uncompromising quality, it is very versatile. You can even put it in your own home! But I’m not sure that your neighbors will like it.
