Spike 3610.05
Spike 3610.05

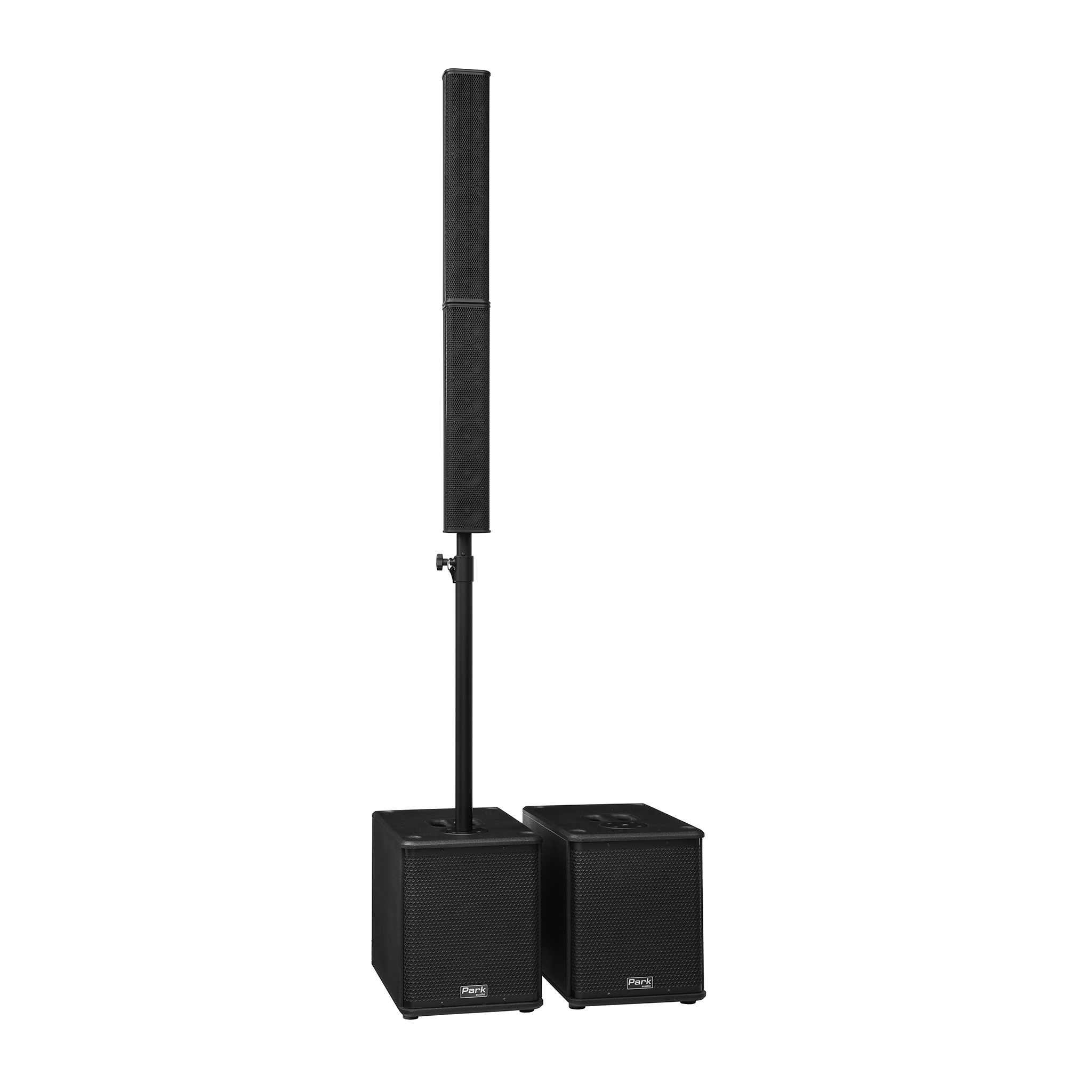

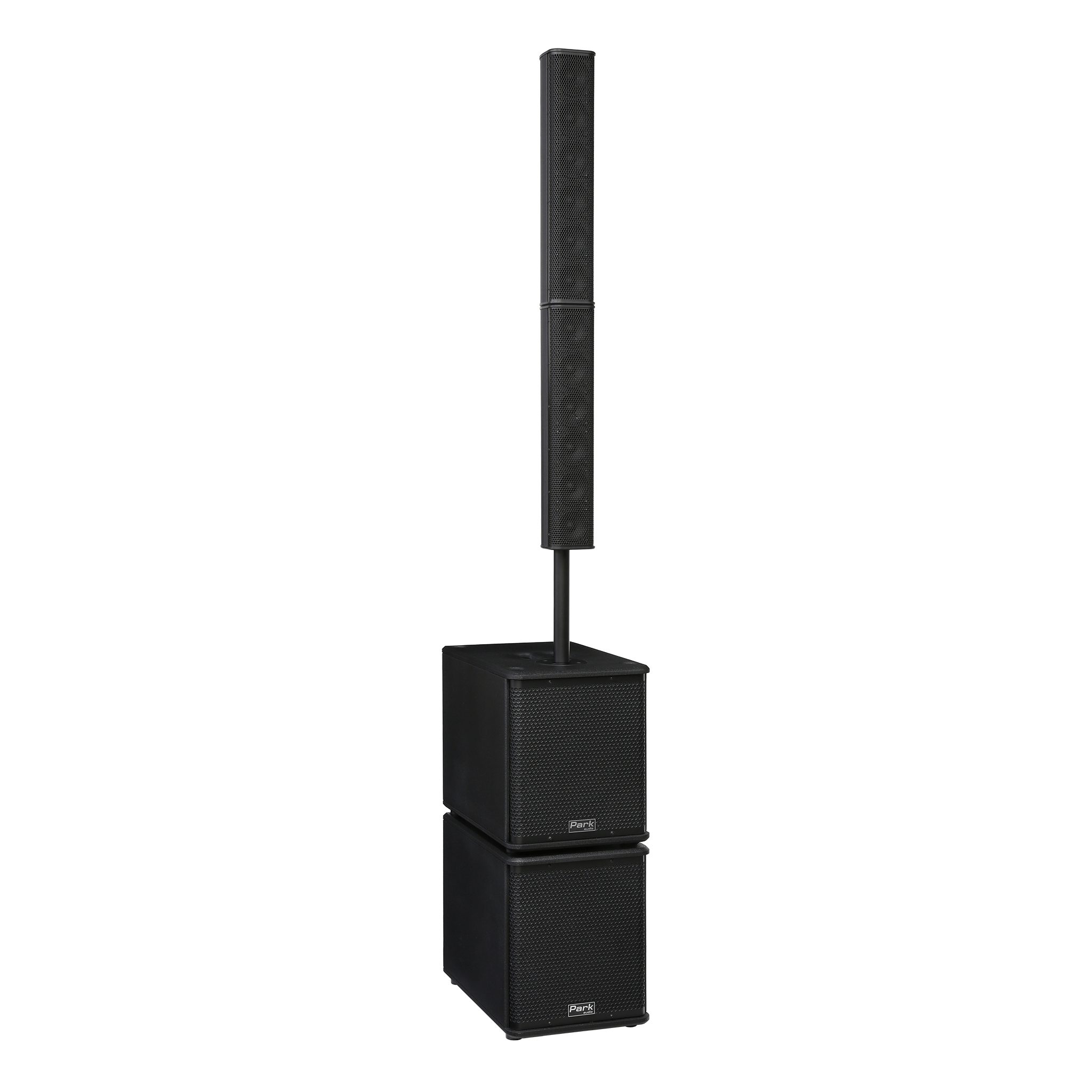

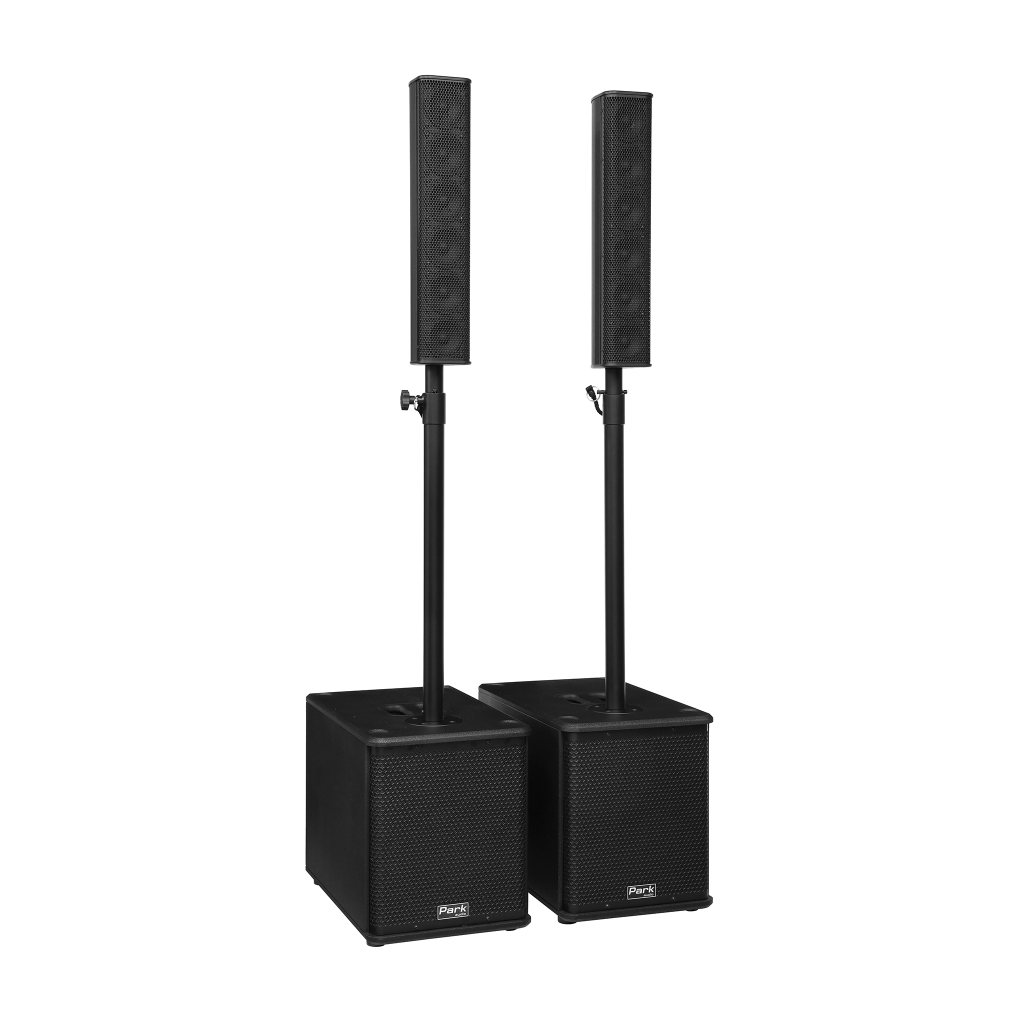

All the benefits of line arrays are packed into an ultra-compact package. You’ll experience truly pure sound and gain other benefits, such as long range or low microphone feedback when power is not critical.
VA306.05

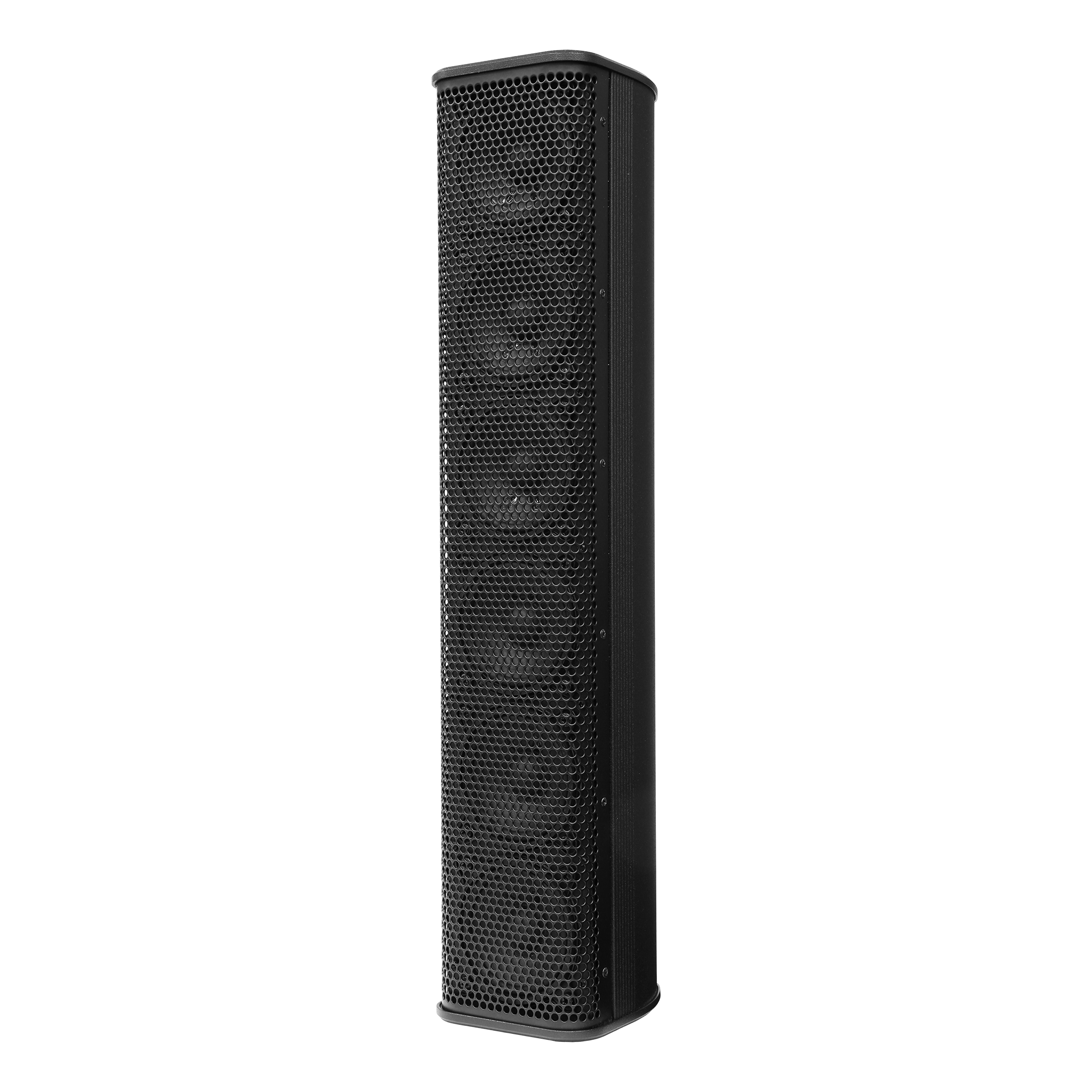

This is a line array of 6 3″ drivers, made in a compact but durable metal case. The use of 3″ speakers ensured an ultra-short distance between them, which in turn minimized interference and made it possible to get truly high-quality sound even at short distances, which cannot be said about classic large line arrays.
MG 110-P.05

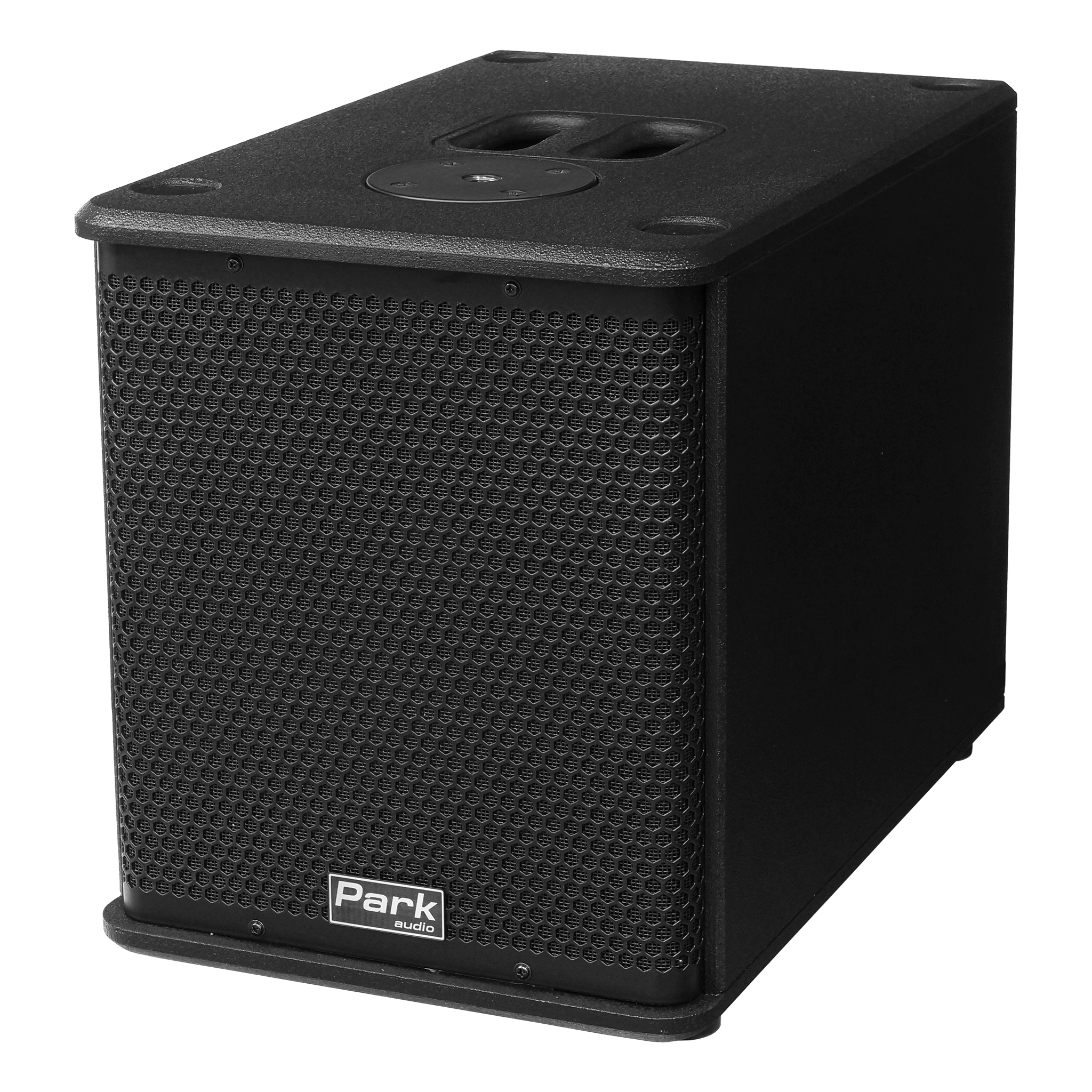

A very compact 10″ subwoofer, made of birch plywood and with a professional coating resistant to mechanical impact, fully provides the entire system with low frequencies and is capable of emitting as much as 122dB SPL max.
Technical data
Model name
Spike 4818.05 Duo
| Power (summ) | 1260 W |
| Frequency response | 50 Hz – 17 KHz |
| SPL max. | 125 dB |
Loudspeaker VA408.05
| Power (nominal/programm) | 120 / 240 W |
| Frequency response | 140 Hz – 17 KHz |
| SPL max. | 98 dB / 12 m |
| Transducers | 8 x 4″ dia FaitalPRO full range speaker |
| Sensitivity | 96 dB |
| Nominal impedance | 10 Ohm |
| Directivity: | |
| – horizontal | 140° |
| – vertical | 20° (array effect) |
| Mass | 6 Kg |
Subwoofer PZ118-P.05
| Configuration | Active subwoofer |
| Power (nominal/programm) | 200 / 400 W |
| Frequency response | 50 Hz – 250 KHz |
| SPL max. | 122 dB / 1 m |
| Transducers | 10″, voice coil 2″ |
| Sensitivity | 93 dB |
| Dimentions | 325x395x505 (W, H, D) |
| Acoustic design | Rectangular case, bass reflex |
| Body material, coating | Birch plywood, black water-polymer paint |
| Mesh material, coating | Perforated steel, black powder paint. |
| Mass | 16.5 Kg |

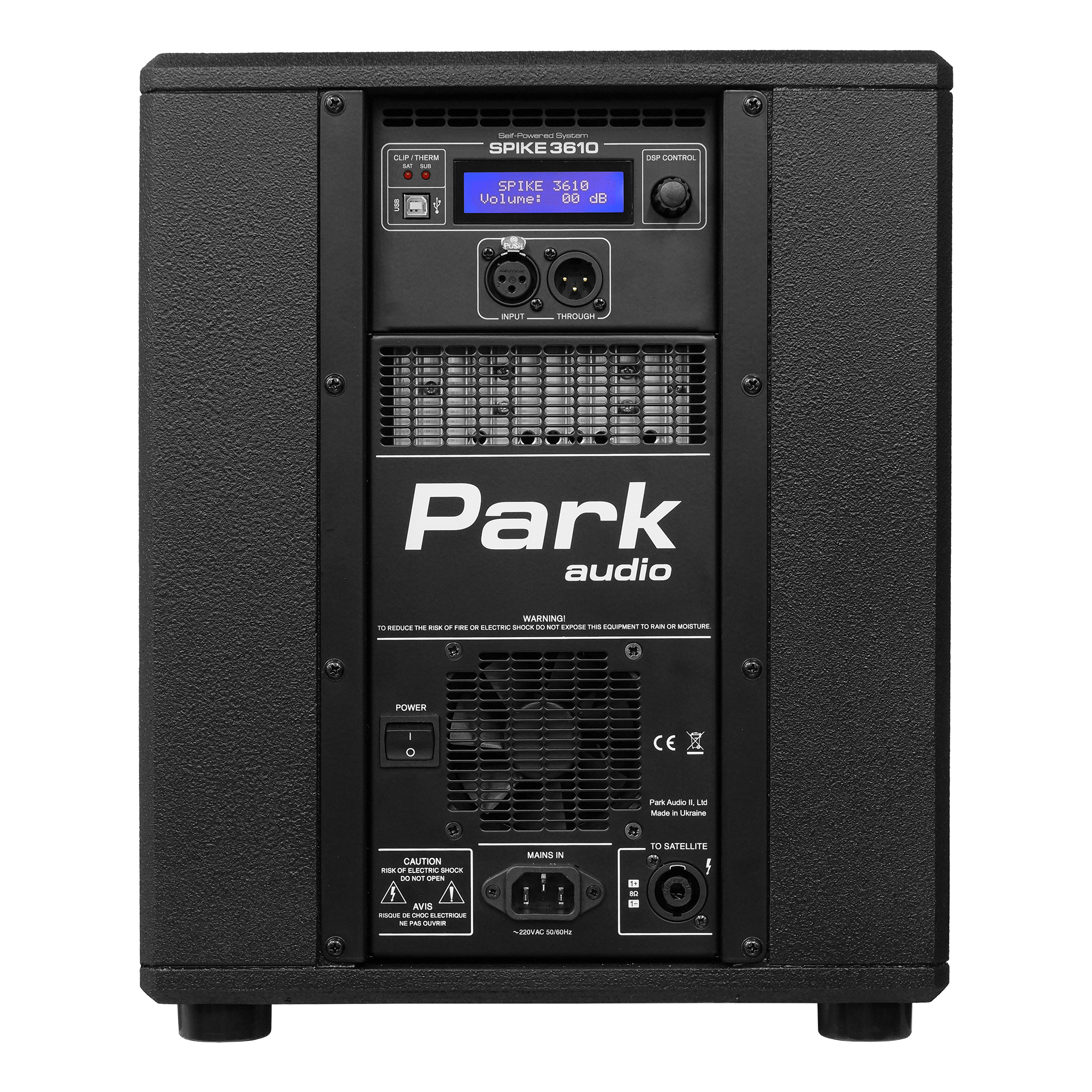

Built-in PZ118-P.05 amplifier with DSP platform
| Rated power (RMS): | |
| – subwoofer channel | 350 W, class D |
| – satellite channel | 280 W, class D |
| Sensitivity | 775 mV |
| The input resistance is | 10 kΩ |
| Signal-to-noise ratio | 98 dB (unweighted) |
| Input / line output | XLR / XLR |
| Forced cooling | Yes |
| Power supply | ~220-230 V, 50 / 60 Hz |
DSP processor
| Sampling frequency | 48 KHz |
| Converters bit rate | 24-bit |
| Internal signal processing | 56-bit |
Who is this system for?
First of all, for connoisseurs of quality sound. Spike 3610.05 is truly uncompromising quality in a very compact design. This product is ideal for musicians or small bands who are used to traveling a lot. Small size and weight combined with professional durability are just what you need in such cases. This kit is also ideal for small bars, cafes, restaurants, for holding various events, or even small concerts. You just need to supply power.
